Special Material For PEEK Seals

Brand: LUYANG · Product origin: China · Delivery time: 7 days · Supply capacity: 1t/week

1. PEEK sealing material is anti-deforming capability. 2. PEEK sealing material has chemical resistance. 3. PEEK sealing material is Low coefficient of friction.

BrandLUYANG
Product originChina
Delivery time7 days
Supply capacity1t/week

Request a Quote
WhatsApp an Engineer

Product Details

Special Material For PEEK Seals

Material Characteristics of Special Material for PEEK Seals

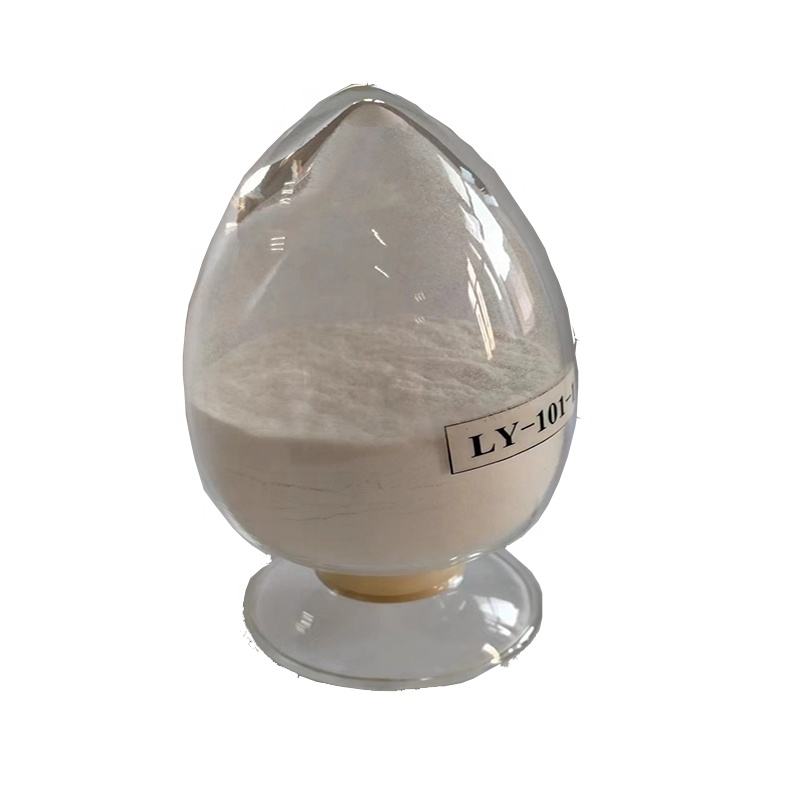

The 101 - 1 model of Seal PEEK professional material is a top choice for PEEK sealing applications.
Material Form and Molding
This PEEK sealing material is a white powder, processed via compression molding. Compared to injection molding, compression molding gives it advantages. During the process, the powder is put in a mold, then pressured and heated. This helps it take shape and sets the stage for its sealing performance.
Crystallinity and Density
Compression - molded PEEK seal material, like the 101 - 1 model, has higher crystallinity than injection - molded ones. The polymer chains are more ordered, leading to better density. A denser material, made from Seal PEEK professional material, can better block fluids and gases, ensuring a more reliable seal.
Lightweight and High - Performance
The 101 - 1 model PEEK sealing material is lightweight despite its good density. This is great for weight - sensitive applications, such as aerospace. It also has a high modulus, meaning it's stiff and resists deformation. Plus, it has high compressive strength, allowing it to withstand pressure without breaking or losing its seal in high - pressure systems.
Ideal for Sealing
With higher crystallinity, better density, light weight, high modulus, and compressive strength, the 101 - 1 model of Seal PEEK professional material is perfect for sealing. In oil and gas, it can handle harsh conditions and high pressures. In the automotive industry, its lightweight and high - performance features ensure leak - free engine and fuel system operation.
In electrostatic - sensitive scenarios, Anti - static PEEK raw materials can be added during production. They blend with the base Seal PEEK professional material to prevent static build - up, crucial in electronics and sensitive environments.
Industrial insulation raw materials PEEK can enhance PEEK sealing material. When combined, they add insulation properties, useful in applications needing both sealing and insulation, like electrical enclosures or high - temperature industrial processes.

Seal PEEK professional material

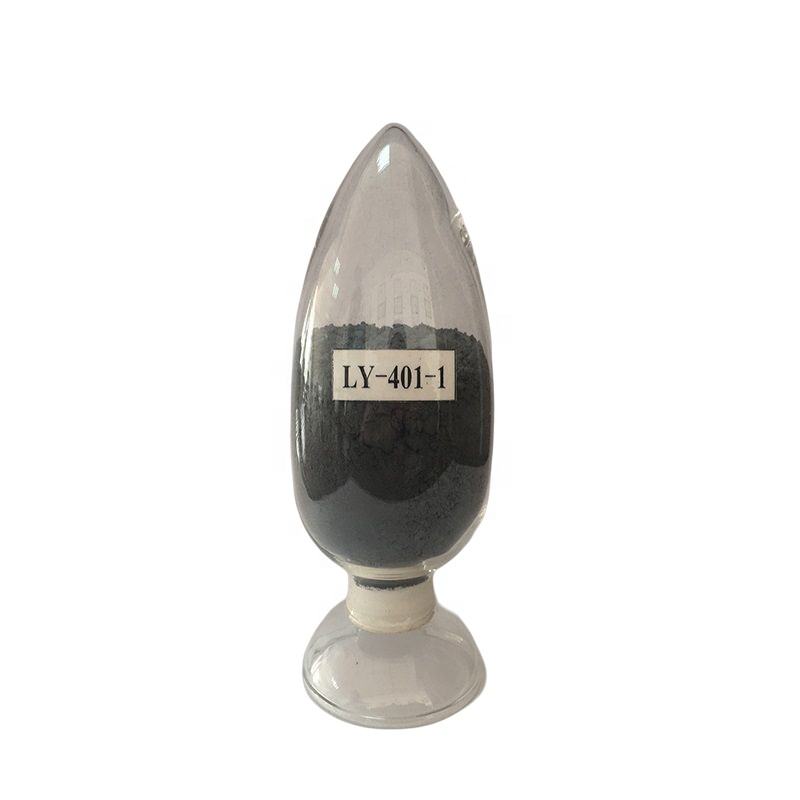

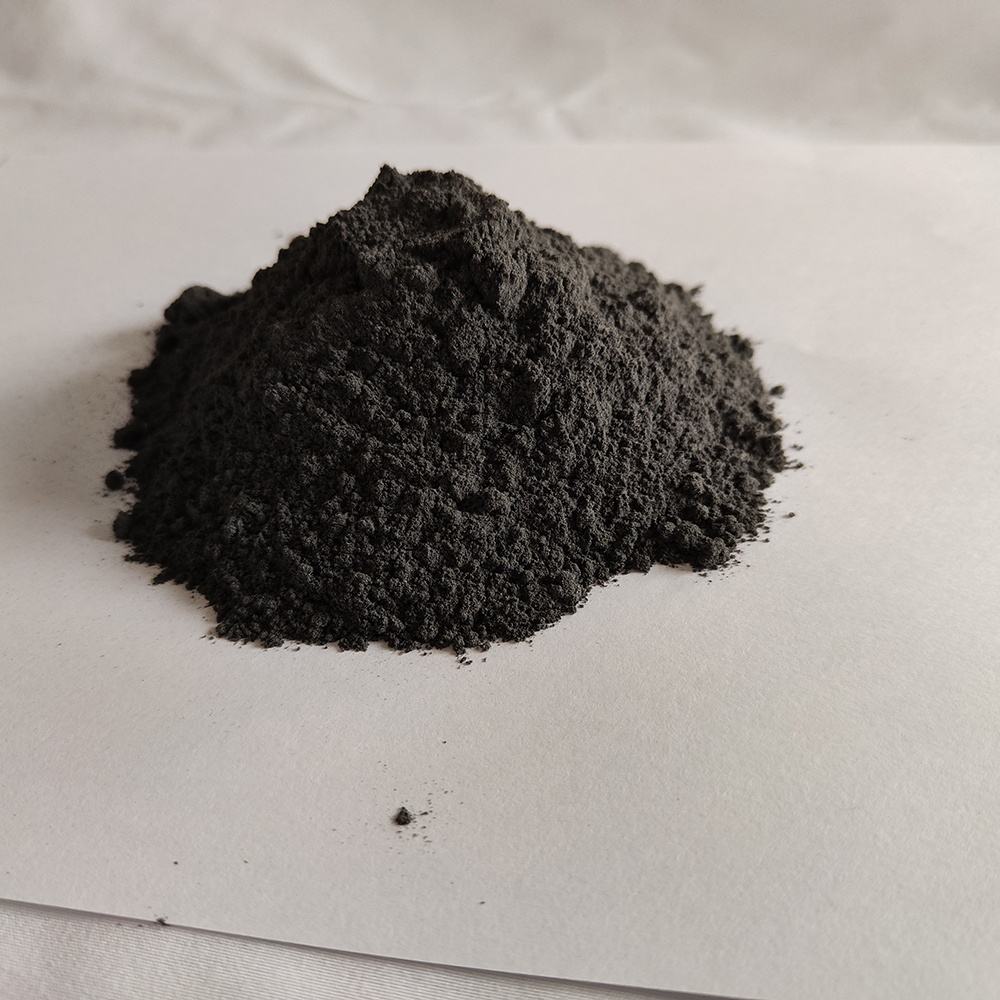

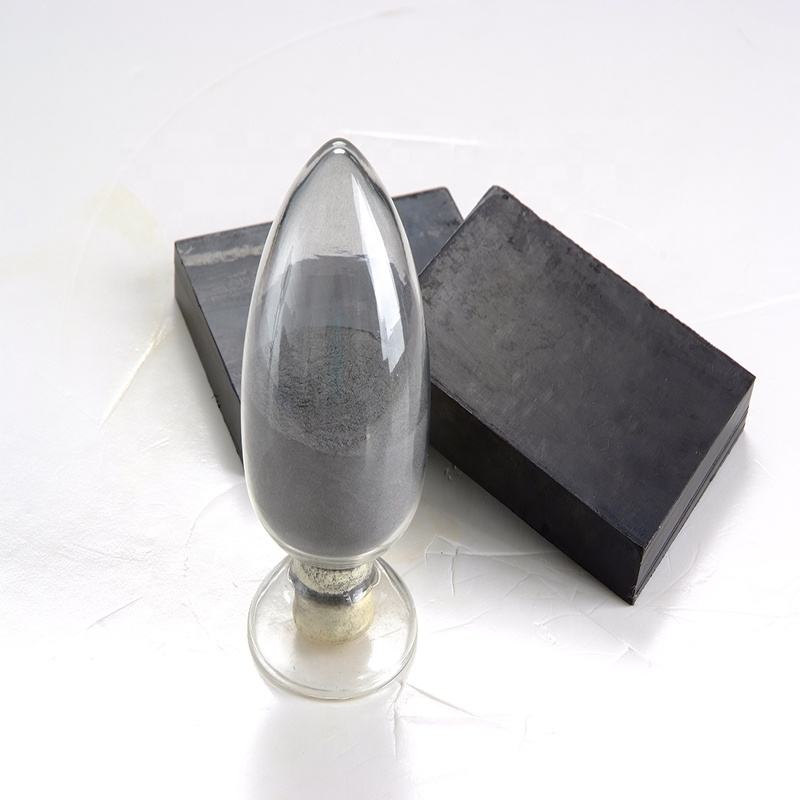

401-1 model, Seal PEEK professional material is a black powder that is processed into various pipes, bars, plates, etc. through special molding processes. This industrial insulation raw materials PEEK has excellent creep resistance and low friction coefficient, and can be used as a material for bearings, bushings, and bushings.

Industrial insulation raw materials PEEK

Basic properties of Industrial Insulation Raw Materials PEEK:

Model Number	LY-101-1	LY-401-1
Product name	PEEK sealing material
Material	PEEK
Color	white	Black
Application	sealing material
Certificate	ISO9001
Appearance	white powder	Black Powder
Density	1.3g/cm³	1.97g/cm³
Feature	better compactness and uniform

The main technical indicators of Anti-static PEEK raw materials are:

LY-101-1
ENTRY NAME	UNIT	INDEX
Tensile Strength	MPa	91
Bending Strength	MPa	180
Compressive Strength	MPa	140
Impact Strength (without notches)	kJ/m²	18
Proportion	g/cm³	1.35
Hot deformation temperature (1.8MPa)	℃	150
Maximum operating temperature	℃	260

LY-401-1
ENTRY NAME	UNIT	INDEX
Tensile Strength	MPa	19.4
Bending Strength	MPa	20.7
Compressive Strength(5%)	MPa	12.9
Cantilever beam with notch impact strength	kJ/m²	2
Density	g/cm3	1.98
Hot deformation temperature (1.8MPa)	℃	55

Application areas of Anti-static PEEK raw materials:

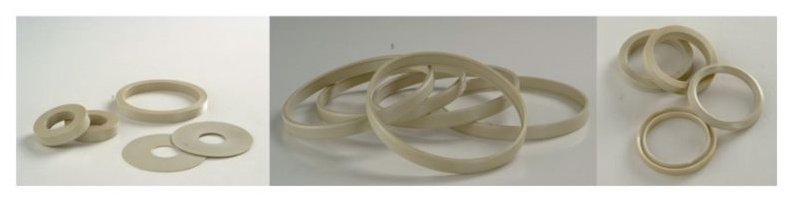

101-1 model, Anti-static PEEK raw materials are often used for sealing retaining rings, flat gasket seals, combination seals, ball valve seals, and lip seals.

PEEK sealing material

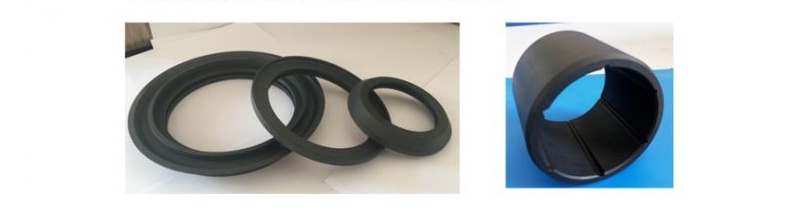

401-1 model, Seal PEEK professional material is often used in dust discs, shaft sleeves, gaskets, sliders, piston rings, valve seats, etc.

Seal PEEK professional material
