PEEK high strength insulating material

Brand: LUYANG · Product origin: China · Delivery time: 7 days · Supply capacity: 1t/week

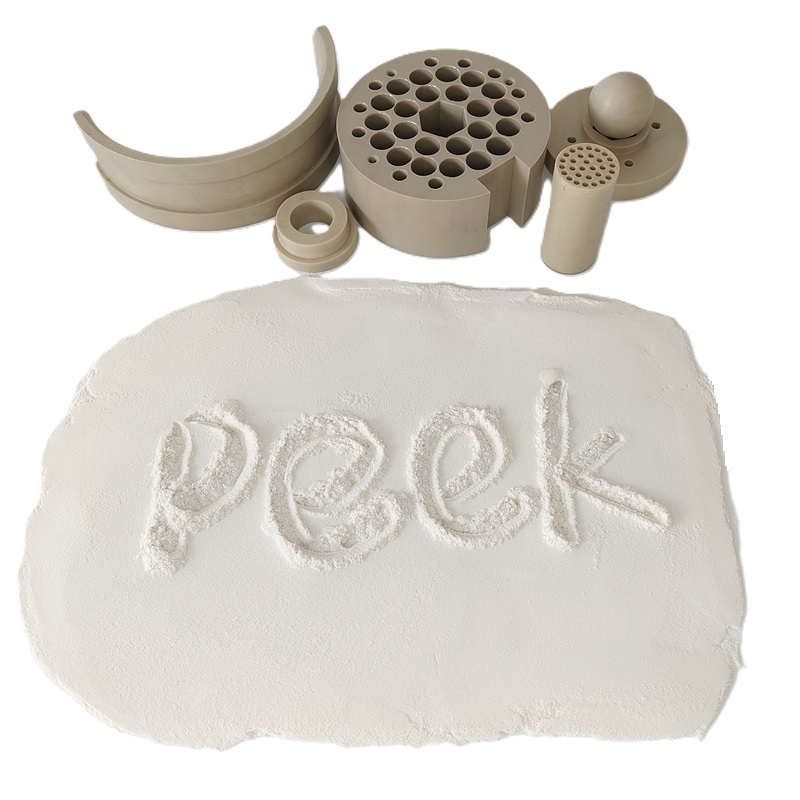

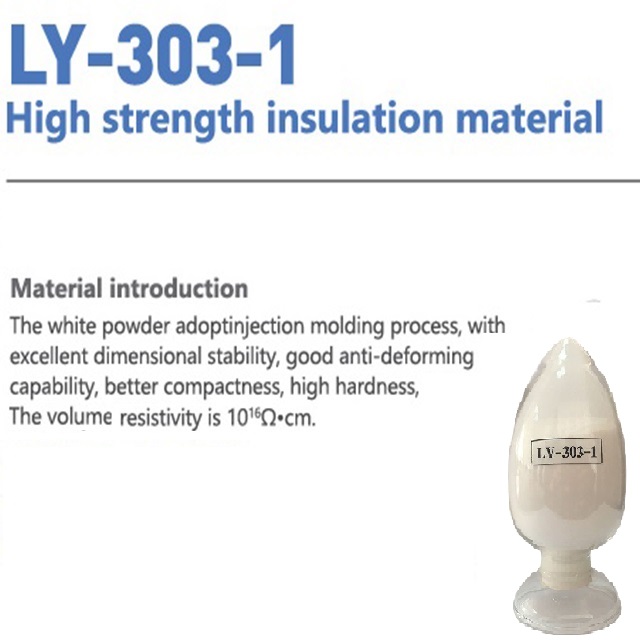

1.PEEK glass fiber particles are white powder by injection molding process. 2.PEEK gf30 has excellent dimensional stability, good deformation resistance, good density, high hardness, and a volume resistivity of 3.Powdered PEEK insulation volume resistivity of 10"Ω·cm.

BrandLUYANG
Product originChina
Delivery time7 days
Supply capacity1t/week

Request a Quote
WhatsApp an Engineer

Product Details

PEEK high strength insulating material

1. High Mechanical Strength
Powdered PEEK insulation has great mechanical strength. Its unique molecular structure gives it toughness. In high - performance machinery with vibrating and impacting parts, PEEK - made components stay intact. It often has over 90MPa tensile strength, outperforming many regular insulators. This strength ensures durability in normal use and reliable operation in harsh mechanical conditions.
2. Good Densification and Uniformity
When processed, Powdered PEEK insulation can be well - densified. Hot pressing and injection molding evenly compact it. The final product is highly uniform. PEEK molecules are evenly spread, so properties are consistent throughout. Whether for electrical or mechanical aspects, there are few variations. Good densification also makes it more resistant to moisture due to fewer voids.
3. Excellent Electrical Insulation
Powdered PEEK insulation has outstanding electrical insulation. It can block electrical currents across a wide frequency range. With a dielectric constant of 3.2 - 3.3, it reduces energy loss in electrical transmission. Its 17 KV/mm breakdown voltage allows it to withstand high - voltage fields. An arc resistance of 175V shows its good insulation. It's perfect for electrical and electronic applications like high - voltage connectors and circuit boards.
4. High Temperature and Corrosion Resistance
Powdered PEEK insulation resists high temperatures well. With a 343℃ melting point and 143℃ glass transition temperature, it keeps its properties under heat. It can be used long - term at 260℃ and endure short - term exposure to 300℃. It hardly decomposes even at 400℃ briefly. It also resists many organic solvents, oils, weak acids, and alkalis, except concentrated sulfuric acid. So, it's suitable for extreme environments like chemical plants with high heat and corrosive substances.

Powdered PEEK insulation

The main technical indicators of insulation material material are:

Model Number
ENTRY NAME	UNIT	INDEX
Tensile Strength	MPa	80
Bending strength	MPa	151
Impact strength (without notches)	KJ/㎡	30
Proportion	g/m³	1.54
Dielectric strength	KV/mm	23
Volume resistivity	Ω· cm	10¹⁶
Maximum operating temperature	℃	260

Insulation material

Application fields of insulation material:

1. insulation material is used for the insulation of transformers, switch cabinets, insulators, wires and cables and other equipment and components to ensure the safety and stability of power transmission.

2.insulation material plays an insulating role in circuit boards, electronic component packaging, motors, etc. to prevent short circuits and leakage.

3.insulation material such as optical cables and the insulation parts inside communication equipment.

4. Insulation material is used for the insulation of electrical equipment in locomotives and vehicles.

5. Insulation protection of insulation material such as solar panels, wind power equipment, etc.

Powdered PEEK insulation

Fast response to shipping time：

Our commitment to shipping within 7 days demonstrates a deep understanding of our customers' time sensitivity. In the fiercely competitive market, we respond quickly to customer needs through efficient logistics operations and technological support to ensure that orders are delivered on time in the shortest possible time.

Insulation material

Related Keywords

Powdered PEEK insulation Insulation material
