PEEK Coil Frame

PEEK Coil Frame

Brand: LUYANG · Product origin: China · Delivery time: 7 days · Supply capacity: 1t/week

1. PEEK Coil frame has excellent high-temperature resistance. 2. PEEK Coil frame has good insulation performance. 3. PEEK Coil frame is easy to process.

  • BrandLUYANG
  • Product originChina
  • Delivery time7 days
  • Supply capacity1t/week
Request a Quote
WhatsApp an Engineer
Product Details

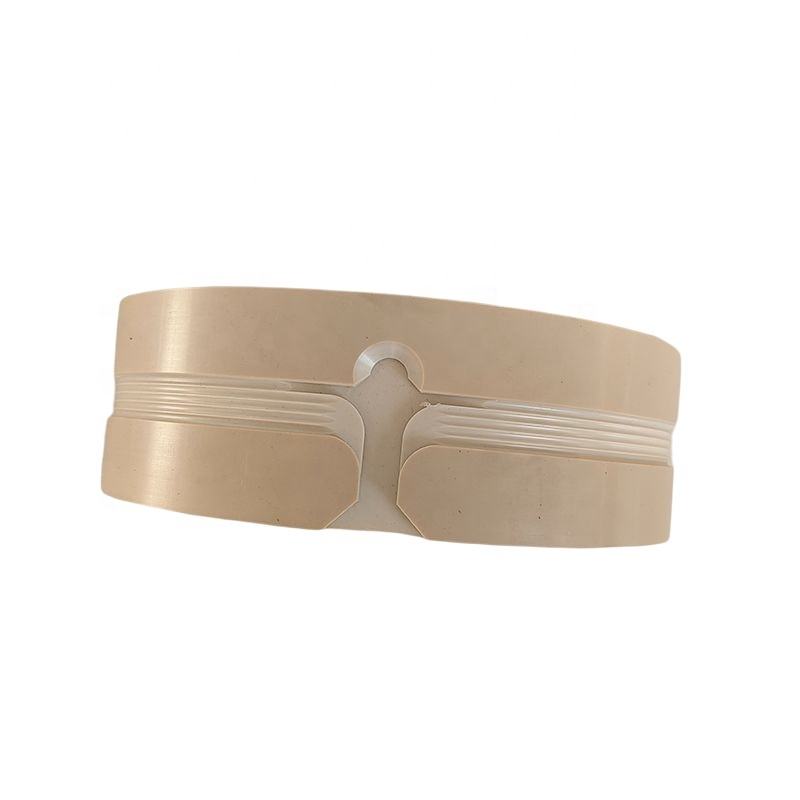

PEEK Coil Frame

Introduction to PEEK Coil Frame
A PEEK plastic coil frame is a specialized bracket made of high - performance PEEK insulation material. PEEK, a semi - crystalline thermoplastic, gives the frame unique properties, fitting various industries well.
Material Properties of PEEK for Coil Frames

  1. High Mechanical Strength

PEEK plastic Coil frame have great tensile and flexural strength. In cars, they face engine vibrations, mechanical stress, and thermal cycling. Their strength keeps the frame intact, ensuring proper coil alignment for efficient ignition coils.

  1. Superior Insulation Performance

PEEK offers excellent electrical insulation. With high volume resistivity and dielectric strength, it stops current flow between coil parts. In electronics, especially high - voltage ones like power transformers, PEEK frames ensure safe insulation, reducing short - circuits and malfunctions.

  1. Exceptional High - Temperature Resistance

PEEK coil frames can endure high temps. With a Tg of around 143°C and a melting point of about 343°C, they maintain integrity in aviation. For example, in aircraft engine electrical systems, they keep coils working in high - temp areas.
Manufacturing Process of PEEK Coil Frames
Manufacturing PEEK coil frames usually uses precision injection molding. Special high - temp injection machines are needed due to PEEK's high melting point. This makes complex, precise geometries with tight tolerances. After molding, machining, surface finishing, and quality inspection follow. Machining gets accurate dimensions and creates coil - winding features. Surface finishing boosts insulation and appearance, and inspection ensures the product meets standards.

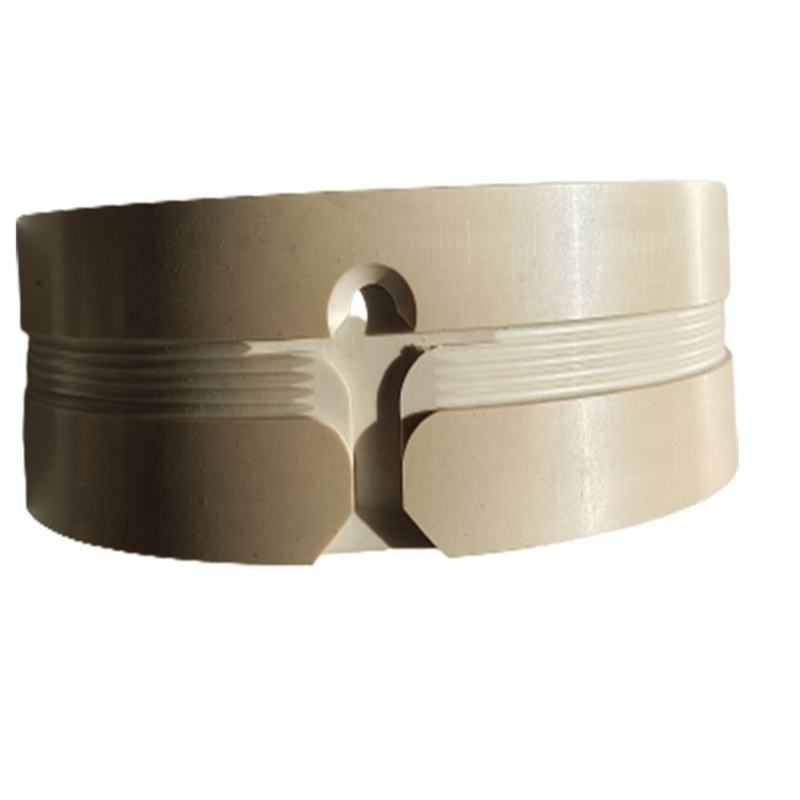

PEEK Coil

Advantages of PEEK Coil frame:

1. The PEEK plastic coil frame can maintain stability and is not easily deformed during operation.

2. PEEK plastic coil frame has excellent insulation performance, which can prevent electric current from harming the surrounding environment and operators.

3. PEEK coil frame can resist the erosion of various acids, alkalis, salts and other chemical substances, and improve the service life of the equipment.


Application of PEEK Coil frame:

1. PEEK Coil in high-voltage electrical equipment such as transformers and inductors.

2. PEEK Coil in engine control unit, sensors, and other components.

3. Precision PEEK Coil for high-end equipment such as airplanes and rockets.

4. PEEK Coil for large-scale equipment such as wind power generation and nuclear power generation.

5. Used for small PEEK coils in communication devices, such as smartphones and routers.


PEEK plastic Coil frame


Why did you choose us?

  • We promise to respond to any customer's questions or needs within 24 hours and promptly resolve them.

  • We continuously introduce new technologies and processes, promote the continuous upgrading and optimization of our products, and always have the latest technology and products.


PEEK Coil frame
