Injection Molding Process PEEK High Strength Insulation Material

Brand: LUYANG · Product origin: China · Delivery time: 7 days · Supply capacity: 1t/week

PEEK Insulation Material is less affected by thermal expansion and contraction. PEEK Insulation Material can reduce nsulation performance changes caused by water absorption. PEEK Insulation Material is easy to process and shape to meet different application needs.

BrandLUYANG
Product originChina
Delivery time7 days
Supply capacity1t/week

Request a Quote
WhatsApp an Engineer

Product Details

Injection Molding Process PEEK High Strength Insulation Material

Material Characteristics of High - Strength Insulation Material

I. Physical State and Processing Suitability

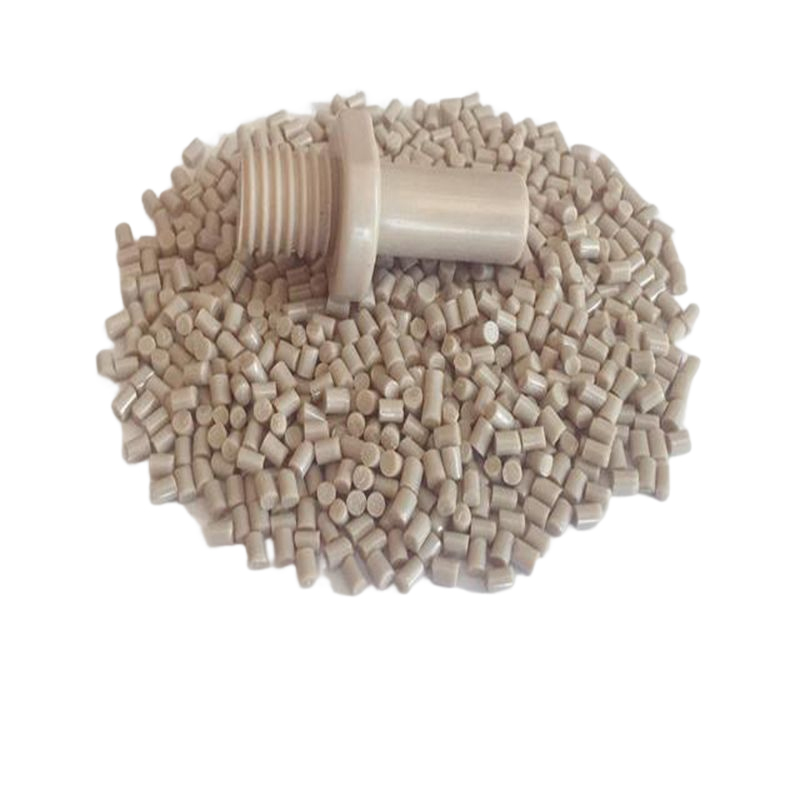

The high - strength insulation material（PEEK glass fiber particles）, often in the form relevant to PEEK insulation material, is composed of gray particles. In some cases, these particles might include PEEK glass fiber particles（High strength insulation material）, which play a significant role in its properties and processing. These particles, whether pure PEEK or with glass fiber reinforcements, are well - adapted for the injection - molding process. The PEEK glass fiber particles, due to their unique physical properties, enable smooth flow within the injection - molding machinery. Their uniform size and shape distribution, a characteristic often associated with PEEK - based materials, ensure consistent filling of mold cavities. This makes it possible to produce high - precision parts in large quantities, highly beneficial for industries such as electronics, automotive, and aerospace. PEEK insulation material in general, with or without glass fiber particles, shows great potential in injection - molding applications due to the favorable flow characteristics of its particulate form.

II. Dimensional Stability

This high - strength insulation material, which can be considered a type of PEEK insulation material（PEEK glass fiber particles）, showcases outstanding dimensional stability. Across a wide range of environmental conditions, including temperature fluctuations, humidity changes, and mechanical stress, it maintains its original shape and dimensions. In applications like electrical housings or aerospace components, where precise fit and long - term performance are essential, this property is invaluable. PEEK insulation material, especially when incorporating PEEK glass fiber particles, is known for its enhanced dimensional stability. The glass fibers act as reinforcement, providing additional structural integrity and preventing significant dimensional changes. This guarantees that the components will not warp, expand, or contract significantly, thus preserving the integrity of the overall system and reducing the need for frequent maintenance or replacement due to dimensional changes.

III. Deformation Resistance

The high - strength insulation material, falling under the category of PEEK insulation material（PEEK glass fiber particles） in many cases, exhibits remarkable deformation resistance. It can endure substantial mechanical loads, such as high pressures, vibrations, and impacts, without undergoing permanent deformation. In industrial settings, for example, in the construction of machinery parts or equipment that are subject to heavy use, this material's ability to resist deformation ensures that the components continue to function properly. PEEK glass fiber particles, when present in the PEEK insulation material（High strength insulation material）, significantly enhance its deformation - resistance capabilities. The fibers distribute the mechanical stress evenly throughout the material, allowing it to withstand higher loads. Whether it's in gears, bearings, or structural elements that require both insulation and mechanical strength, its resilience against deformation is a key advantage.

IV. Machining Characteristics

This high - strength insulation material, often a form of PEEK insulation material, also has excellent machining characteristics. Standard machining tools can be used to cut, drill, and shape this material with relative ease. When custom - designed components are necessary, its machinability allows for the creation of parts with tight tolerances and intricate designs. This not only speeds up the production process but also reduces manufacturing costs. PEEK insulation material（High strength insulation material）, even when containing PEEK glass fiber particles, generally maintains good machinability. The glass fibers do not overly impede the machining process, and the material's stability during machining ensures that the final product meets the exacting quality requirements. This makes it suitable for a variety of applications where precision and customization are crucial.

在文中加入一段对PEEK绝缘材料的应用场景描述

推荐一些关于PEEK绝缘材料的详细研究论文

PEEK绝缘材料的耐热温度是多少？

PEEK glass fiber particles

The basic properties of Peek High Strength Insulation Material ：

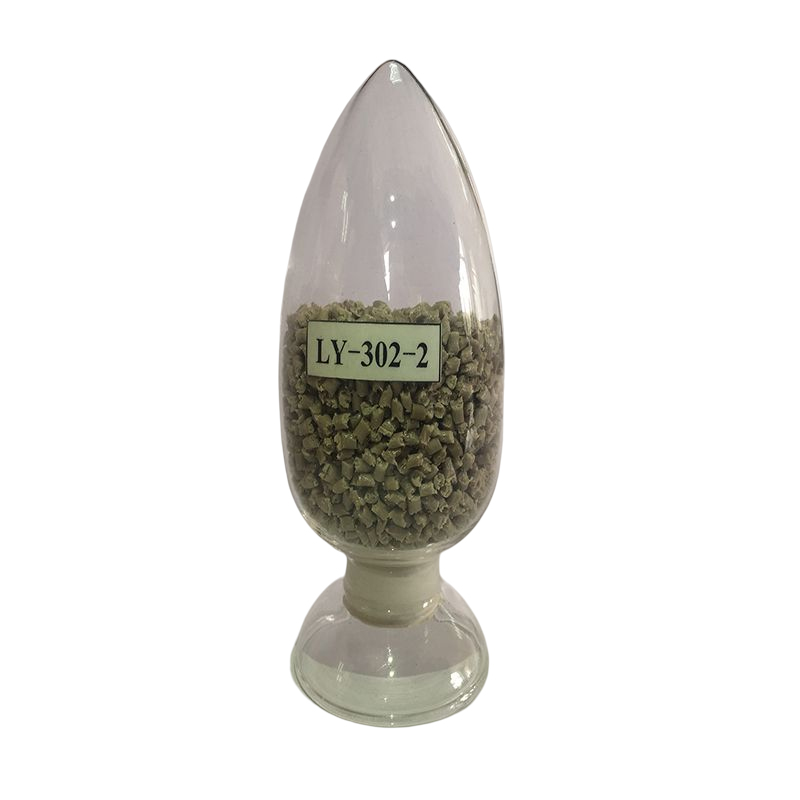

MATERIAL MODEL	LY-302-2
ENTRY NAME	UNIT	INDEX
Tensile strength	MPa	143
Bending strength	MPa	182
Impact strength (without notches)	KJ/㎡	11
Desity	g/cm³	1.64
Insulation strength	KV/mm	23
Volume resistivity	Ω· cm	10¹⁶
Continuous operating temperature	℃	260

PEEK Insulation Material Application fields of Peek High Strength Insulation Material:

1.Electrical and electronic industry: such as high-voltage switchgear, transformers, insulators, etc.

2.Automotive industry: Can be used for high-voltage system insulation in electric vehicles.

3.Rail transit field: train electrical system insulation.

4.Communications industry: Insulation components for communications equipment.

5.Medical equipment field: such as the insulation parts of some high-precision medical instruments.

6.Industrial automation field: insulation protection of various types of automation equipment.

PEEK glass fiber particles

The company has strong R&D and design capabilities:

The company has strong scientific research strength and has established close cooperative relationships with well-known domestic universities. With the support of Shanghai Jiao Tong University, Dalian University of Technology, Dalian University of Technology, Jilin University and other universities, the company has jointly established a research and development center. This initiative aims to integrate the superior resources of both parties and jointly promote technological innovation. In 2019, the company was rated as Dalian Industrial Design Center for its outstanding R&D capabilities, demonstrating the company's status and influence in the industry.

PEEK Insulation Material
